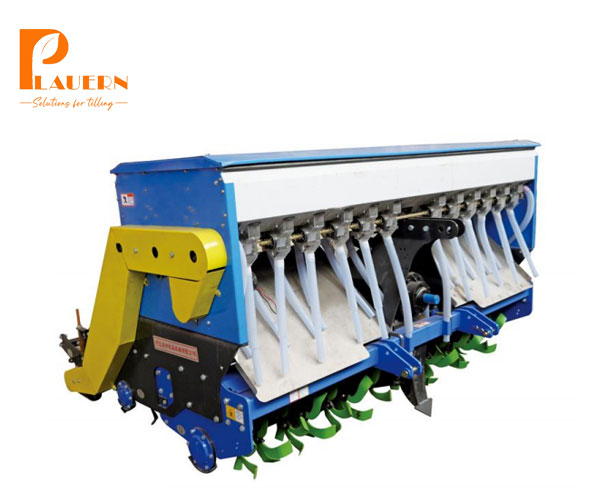

2BFG Rotary tillage stubble cleaning and fertilizing seeders
Series model:230/250
The machine adopts the form of rotary tillage, intermediate sowing, and post-knife axis mixing, which can complete the field operation procedures such as rotary tillage, soil breaking, straw shredding and stubble removal, fertilization, sowing,suppression and moisture preservation in one operation, which can make the sowing effect more uniform, suitable for various soil conditions, and also greatly reduce the labor intensity and labor frequency. At the same time, it also reduces the single process of machine and vehicle operation, resulting in multiple rolling of farmland and the formation of land compaction.
The seed box and fertilizer box of the machine adopt integrated design, and use synchronous motor to drive the seed box and fertilizer box respectively, which can meet the user's arbitrary adjustment of the fertilizer application and sowing amount, and can also drive the seed box and fertilizer box through the ground roller. The fertilizer spreading method is changed from the traditional plastic hose under the fertilizer to the stainless steel plate fertilizer, which will not produce congestion and can be evenly spread.
The tail of the machine adopts stainless steel roller, not suitable for clay, and adopts spring suppression, which can play a very good suppression effect. The scraper on the ground roller adopts a horizontal double torsion spring, so that the scraper is effectively pressed on the ground roller, which can achieve a good scraping effect. At the same time, the user can adjust the horizontal double torsion spring to achieve different degrees of compression force of the scraper on the ground roller.
